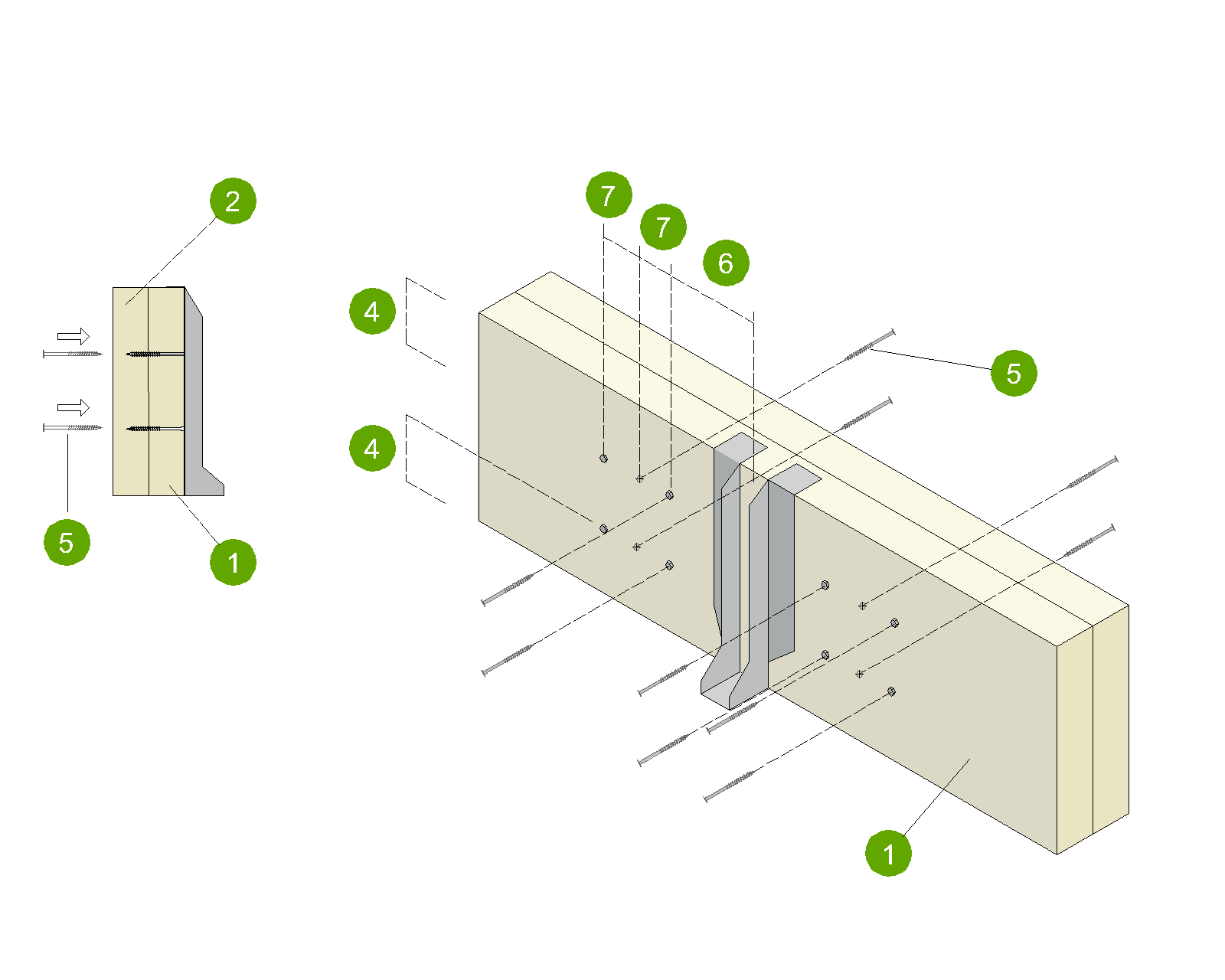

Headside member

Pointside member

75 mm

Screw from the far side

150 mm

70 mm

All dims shown are in mm. Screws to be fully driven in from both sides. Do not countersink or overdrive screws.

Min pointside penetration to be 25 mm. For UDL follow S600, S400 and S300 if no UDL the Kerto ply must be screwed additionally at min 1200 mm.
