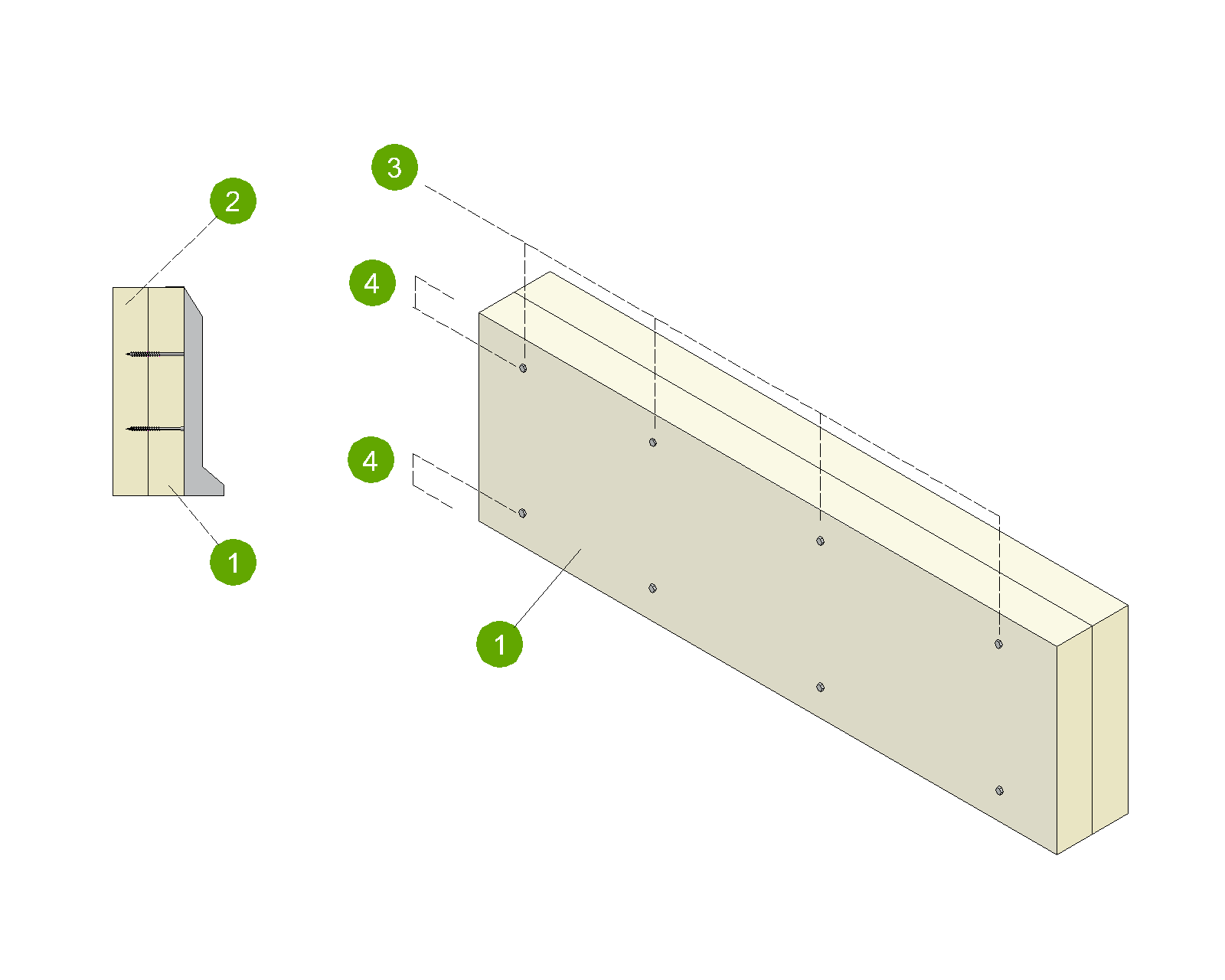

Headside member

Pointside member

400 mm

75 mm

All dims shown are in mm. Screws to be driven from the loaded side. Do not countersink or overdrive screws.

For point load use details S4, S6, S8 and S10. Min pointside penetration to be 25 mm. Min distance to the end of the beam 90mm consider screw pattern in the middle between the incoming joists.
