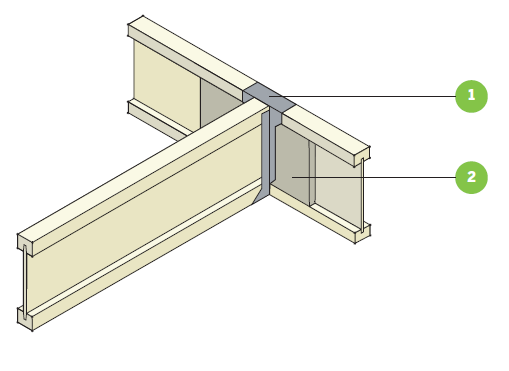

FINNJOIST TO FINNJOIST JUNCTION

Face mount or top mounted hanger.

Install Backer blocks tight to top flange on both sides of Finnjoist. Attach with 10 no. 3.75 x 75mm nails, clenched where possible. Evenly space nails across the face of the backer block. Backer block to be a minimum of 250mm wide.
