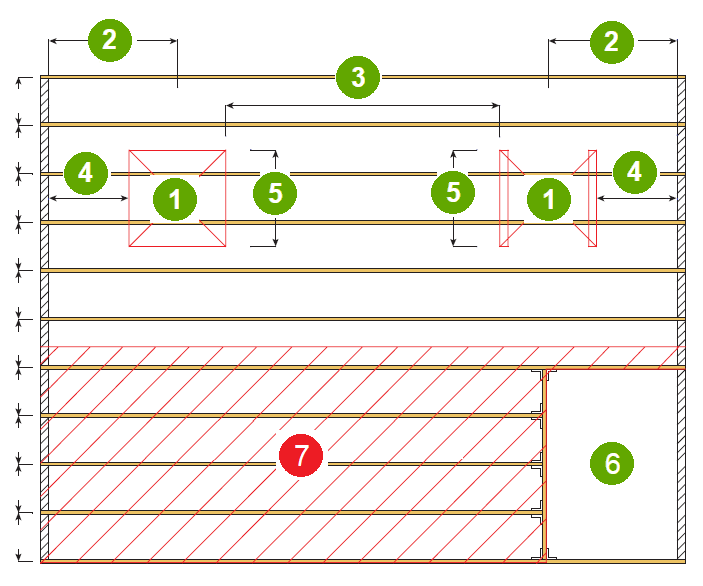

SAFE LOADING OF MATERIALS ON A WORKING PLATFORM
IMPORTANT!! Joists must be fully braced or decked before applying any of the following loads. |
 | Max 200kg per joist depths less than 240mm. |
 | 1600mm max. |
 | 1000mm min. |
 | 1000mm max. |
 | 1200mm min. |
 | Stair opening. |
 | No material stacked in this area! |
Max distance to center of load from face of support 1600mm. Max. 2 loads can be applied to 1 joist length, provided they are not more than 1600mm from the face of the wall and minimum of 10000mm between loads as shown. |
