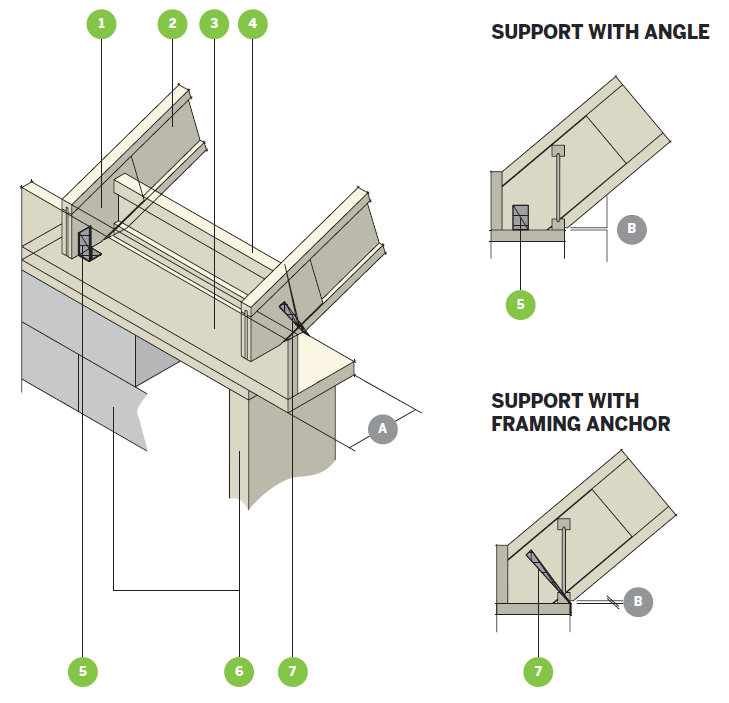

Web stiffener (WS) to transfer the load and connect the rafter. Nailing pattern to be defined by Building Designer.

Rafter FJI

Rimboard

FJI or Kerto blocking

Angle bracket (A)

Masonry or timber frame loadbearing wall

Framing anchor (FA)

Width of support

Spacing of 2mm min. between flanges of FJI and wall

Height of blocking to be same height as rafter except where geometric restrictions occur
