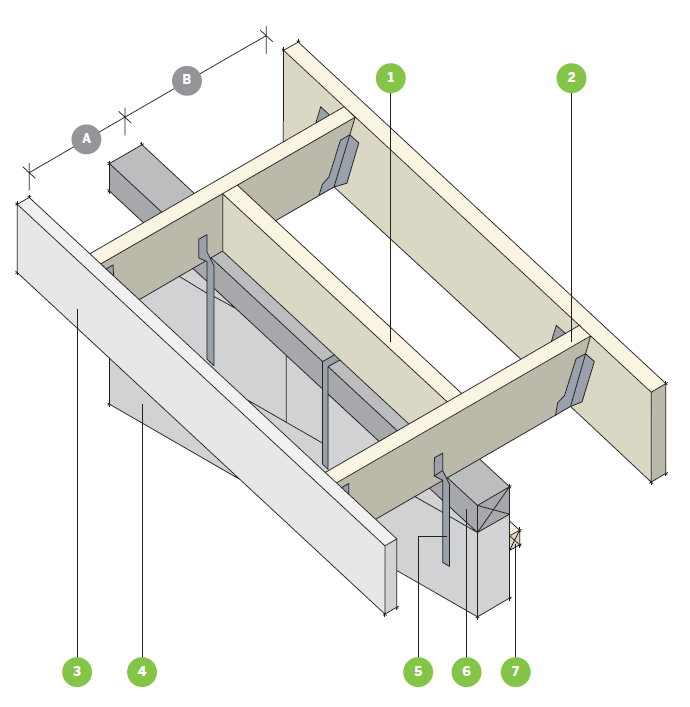

LADDER DETAIL FOR WIDE LADDERS

Blocking

Kerto ladder noggins connected with hangers or angle bracket both sides

Fascia board

Gable wall

Vertical restraint strap (VRS), where required

Wall plate strapped to wall using restraint strap where required

Ceiling noggin where required

Overhang

≥ 2 x overhang A
