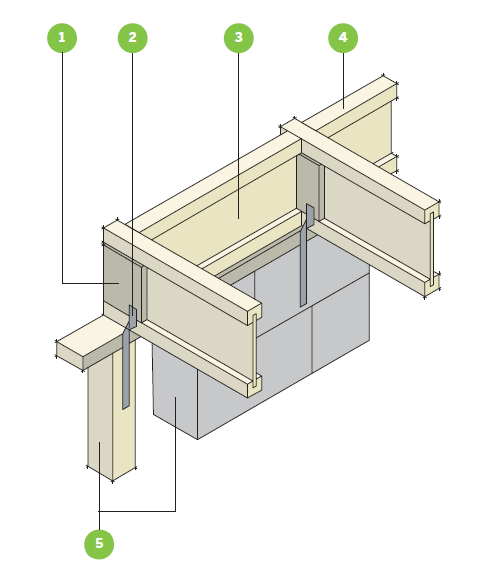

FLAT ROOF EAVES DETAIL

Web stiffener (WS), where required. See also G7

Framing anchors (FA), where required

Ventilation holes may be drilled in blocking where required

Finnjoist or Kerto blocking

Masonry or Timber frame load-bearing wall

2 no 3.75x75mm nails to each side of each joist, nailed through bottom flange into wall plates
