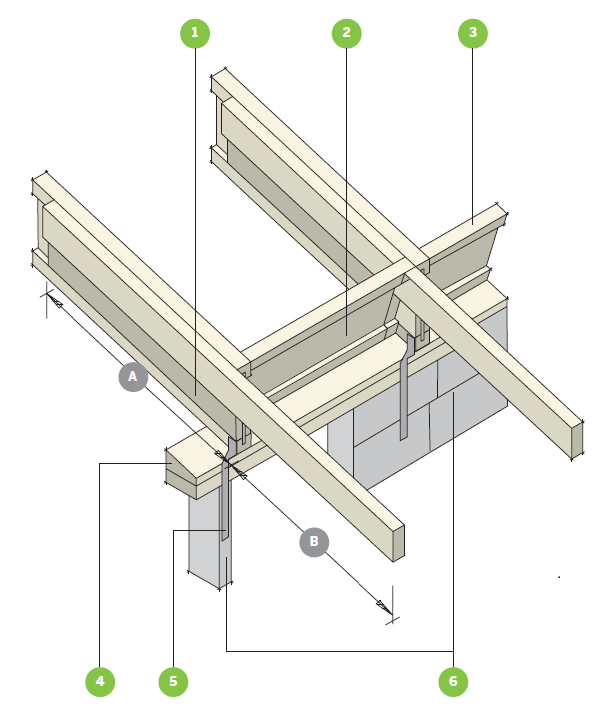

Web stiffeners (WS), where required. See also G7

Ventilation holes may be drilled in blocking where required

Finnjoist or Kerto blocking

Bevelled plate

Framing anchor (FA), where required

Masonry or Timber frame load-bearing wall

1200mm min

600mm max

If no additional load is applied, the minimum specification for the connection between the gusset and rafters is 3.35 x 65mm nails at 150mm centres, staggered and clenched
