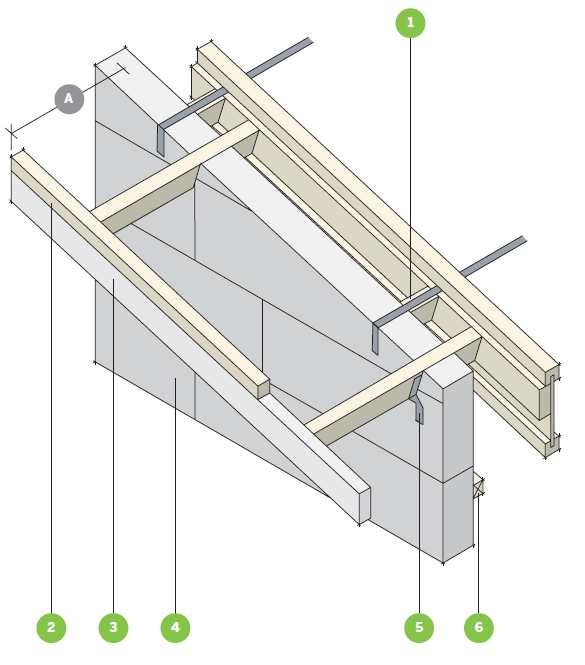

Max overhang 600mm Strap beaded under the cut block when installing straps do not cut the flange Ladder fixed to web of FJI joist

Noggin fixed to the ladder to support tiling battens/sheathing

Fascia board

Gable wall

Vertical restraint strap (VRS), where required

Ceiling noggin where required

≤ 600mm

If no additional load is applied, the minimum specification for the connection between the gusset and rafters is 3.35 x 65mm nails at 150mm centres, staggered and clenched
