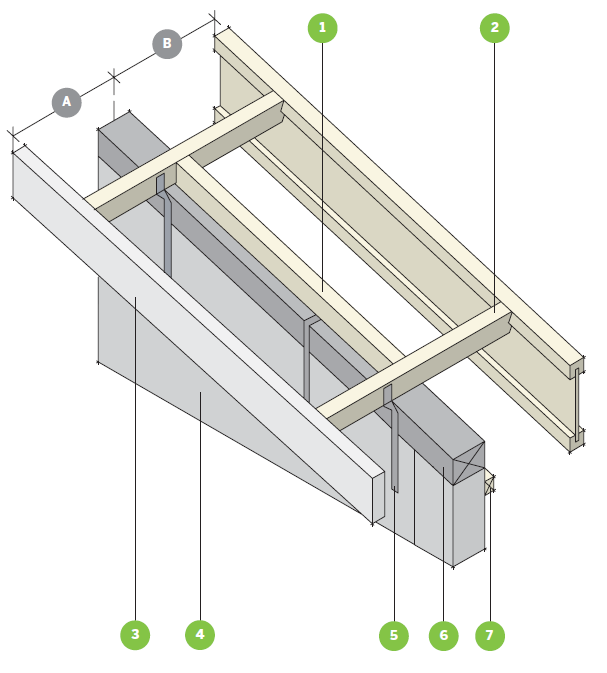

Blocking

Ladder fixed to web of FJI joist

Fascia board

Gable wall

Vertical restraint strap (VRS), where required

Wall plate strapped to wall using restraint strap where required

Ceiling noggin where required

Max overhang D = same as rafter spacing (600mm max)

Rafter spacing

If no additional load is applied, the minimum specification for the connection between the gusset and rafters is 3.35 x 65mm nails at 150mm centres, staggered and clenched
